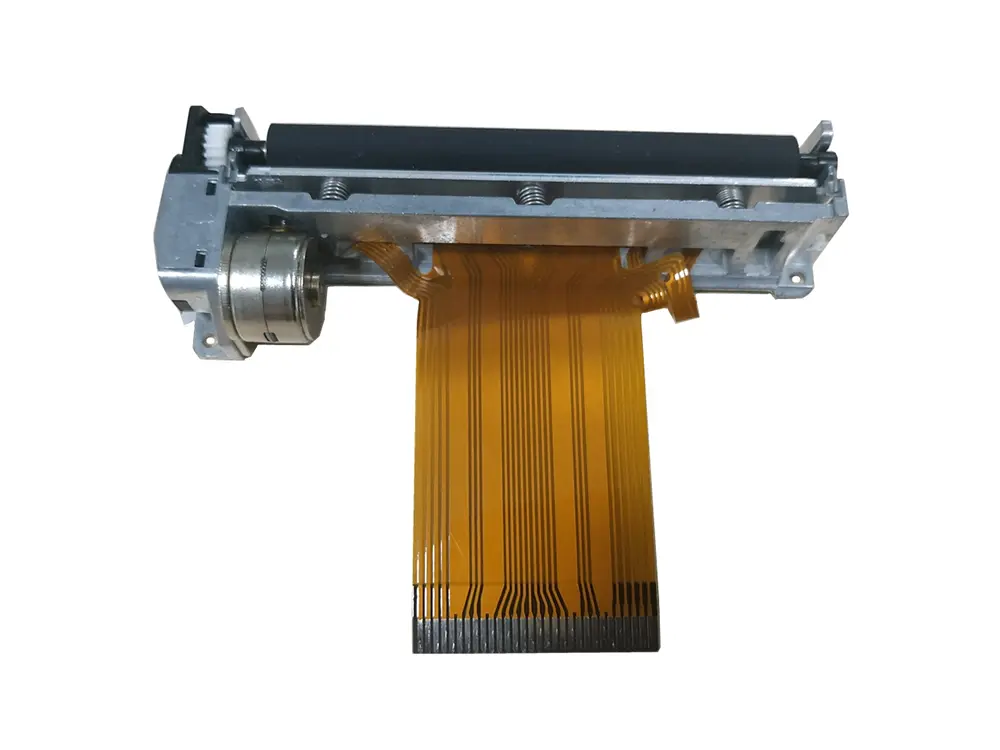

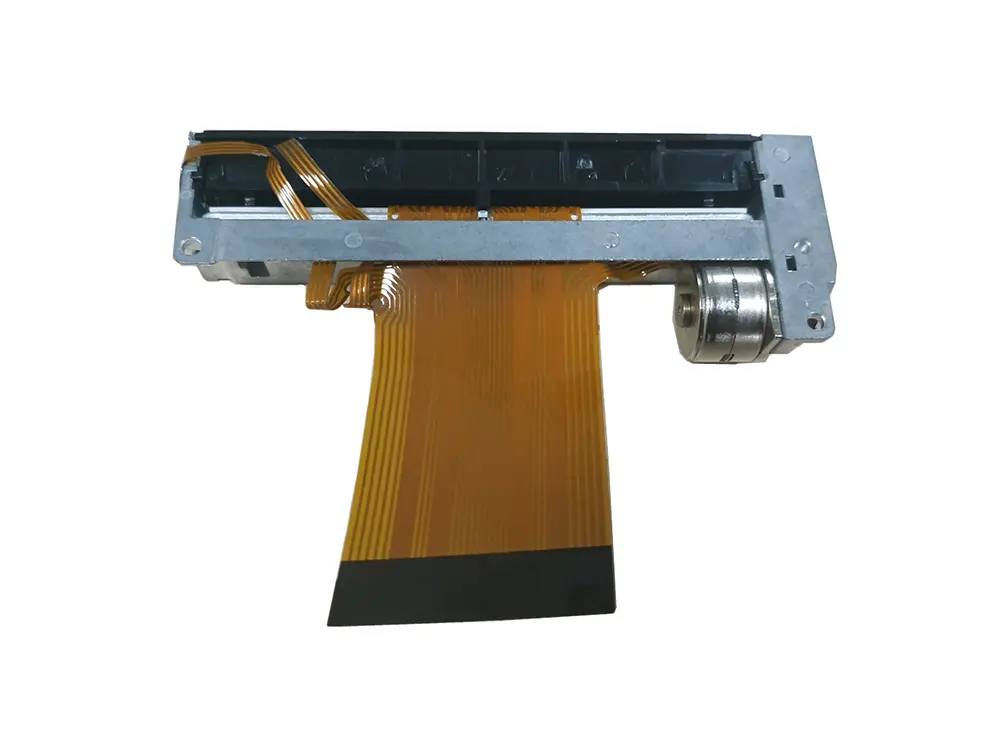

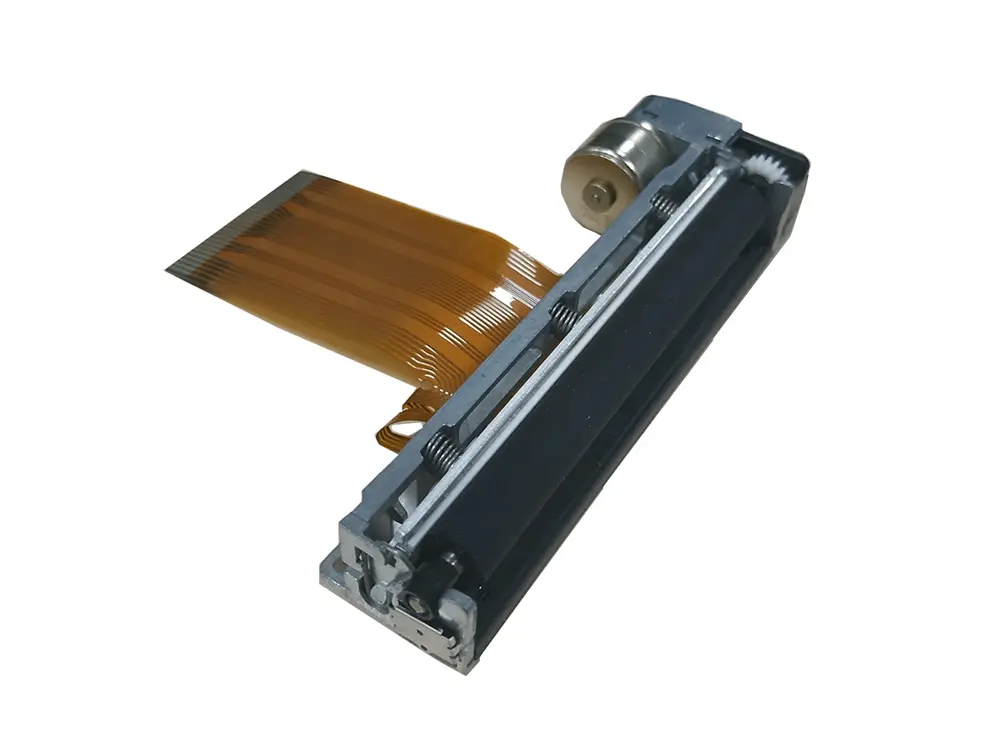

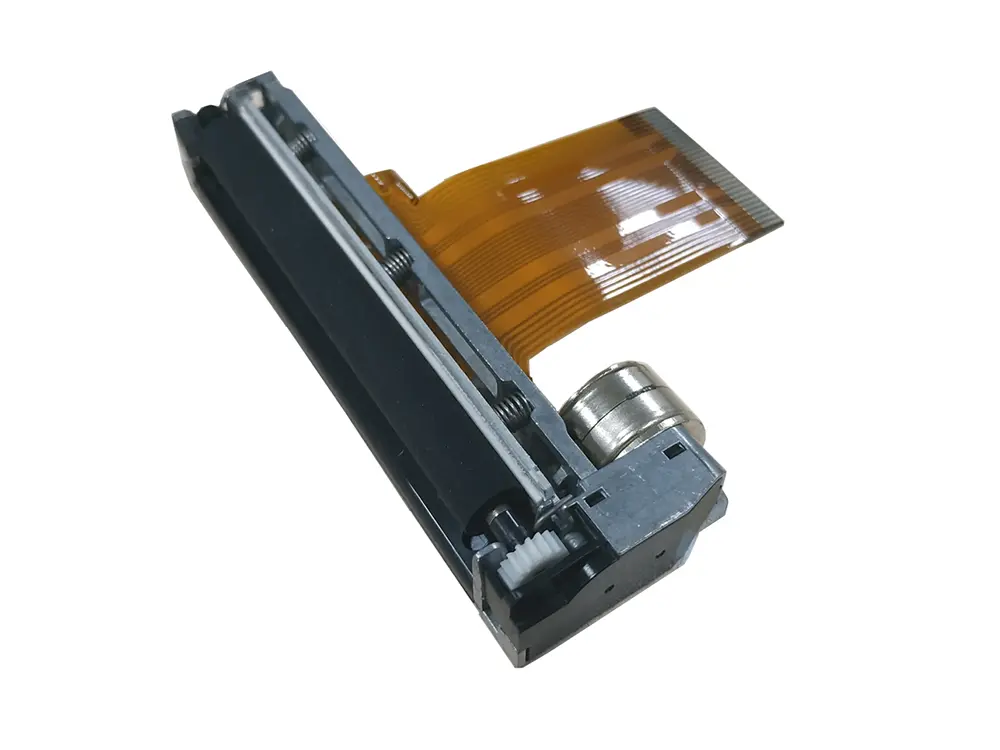

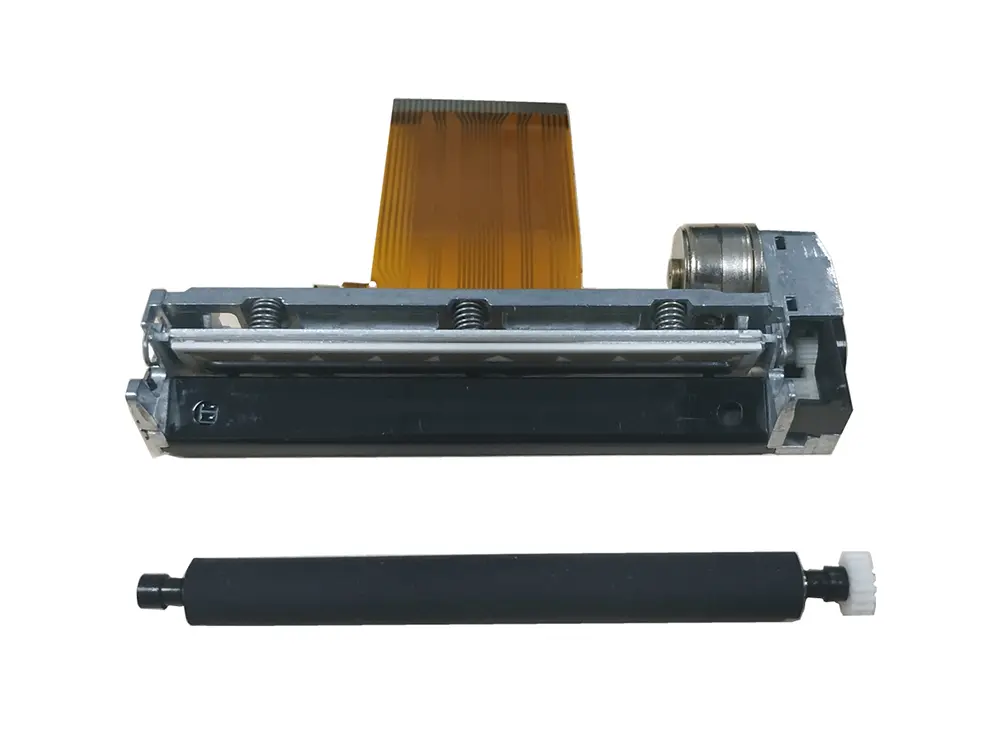

TP638-103 thermal printer mechanism series compatible with FUJITSU: FTP-638MCL103
Features
◆ Easy loading paper
◆ Small size
◆ Light weight
◆ Fast print speed（max print speed 80mm/s）
◆ Wide working voltage
◆ High DPI（8 dots/mm,203DPI）
◆ Long printing life（>50km）
◆ Low noise
Specification
Printing method |
Thermal dot printing |
Number of dots |
576 dots/line |
Resolution |
8 dots/mm |
Valid Printing width |
72mm |
Paper width（mm） |
80mm |
Paper feed pitch |
0.0625mm |
Dimension(mm) |
92.3x33x15.2mm |
Weight（g） |
59g |
Head temperature |
thermistor |
Paper end sensor |
By photo interrupter |
For printer head（V） |
4.2～8.5 |
For logic（V） |
3.13～5.25 |
Operating temperature（℃） |
0～50（no condensation） |
Operating humidity（RH） |
20％～85％（no condensation） |
Storage temperature (℃) |
-25～70（no condensation） |
Storage humidity（RH） |
5％～95％（no condensation） |
Thermal head specifications
Number of Heat Elements |
576 dots |
Dot density |
0.125mm |
Dot size |
0.125mm x 0.12mm |
Paper feed pitch |
0.0625mm |
Valid printing width |
72mm |
Average Resistance Value |
176Ω±4% |
Operating voltage |
4.2V～8.5V |
Pulse life |
100 million pulse |
Mechanical life |
50km |
Life test conditions |
25 ° C, the heating time ratio is not more than 12.5%. |
Application
Automotive
Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters
Express
TP638-103: The Versatile Thermal Printer Mechanism for Modern Applications
The TP638-103 thermal printer mechanism series, designed for compatibility with FUJITSU FTP-638MCL103, is a blend of innovation and functionality. This mechanism is crafted to meet the demands of modern printing with its small size, wide working voltage, and high efficiency, making it a versatile choice for various industries.
The TP638-103's fast print speed of up to 80mm/s is complemented by its high DPI of 203, ensuring that every print is sharp and detailed. The valid printing width of 72mm, along with a paper width of 80mm, allows for a broader range of printing applications, making it suitable for larger format printing needs.
The mechanism's lightweight design at 59g and compact dimensions of 92.3x33x15.2mm make it an ideal choice for portable and space-sensitive applications. The unique movement design simplifies paper loading, reducing downtime and increasing productivity.
The TP638-103's thermal head, with 576 dots and a dot density of 0.125mm, provides a clear and defined printing area. Its operating voltage range of 4.2V to 8.5V and a pulse life of 100 million pulses, along with a mechanical life of 50km, demonstrate the printer's durability and longevity.
The TP638-103 is designed to operate in a wide range of temperatures from 0°C to 50°C and humidity levels from 20% to 85% RH, making it suitable for various climates. Storage conditions are also flexible, with the mechanism able to withstand temperatures from -25°C to 70°C and humidity levels from 5% to 95% RH.
The TP638-103's versatility extends to its applications, covering a wide spectrum from automotive and medical equipment to data terminal devices and express services. Its adaptability makes it a valuable asset in any industry that requires reliable and efficient printing solutions.
Choose the TP638-103 for your next project and benefit from its versatility, performance, and durability in a thermal printer mechanism that is designed to meet the demands of today's dynamic printing environments.
