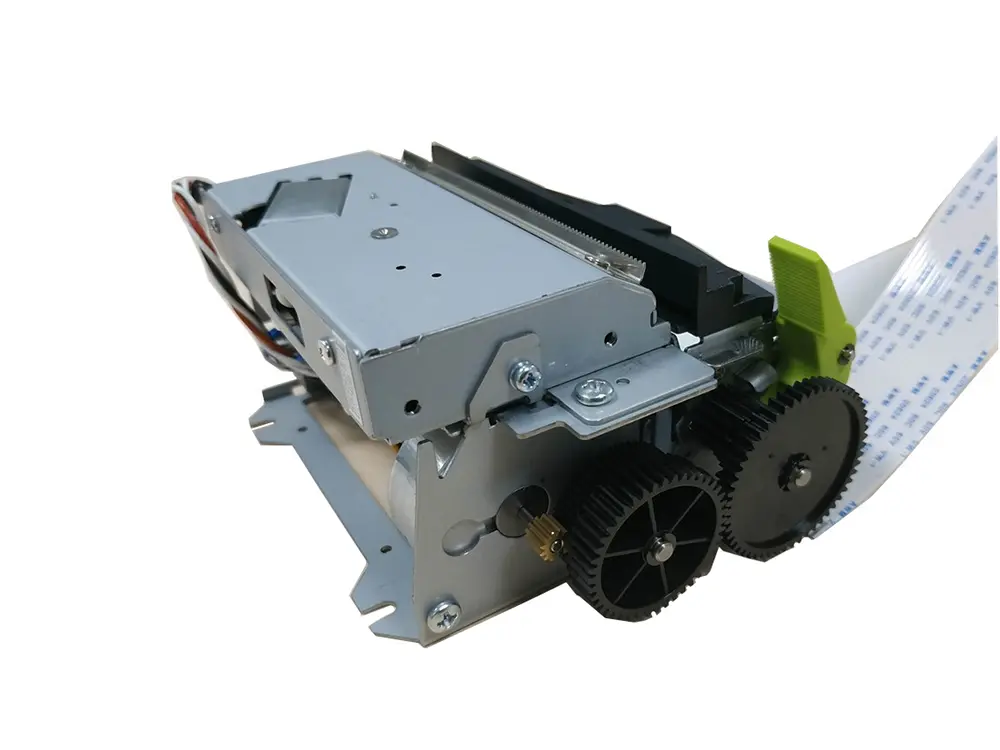

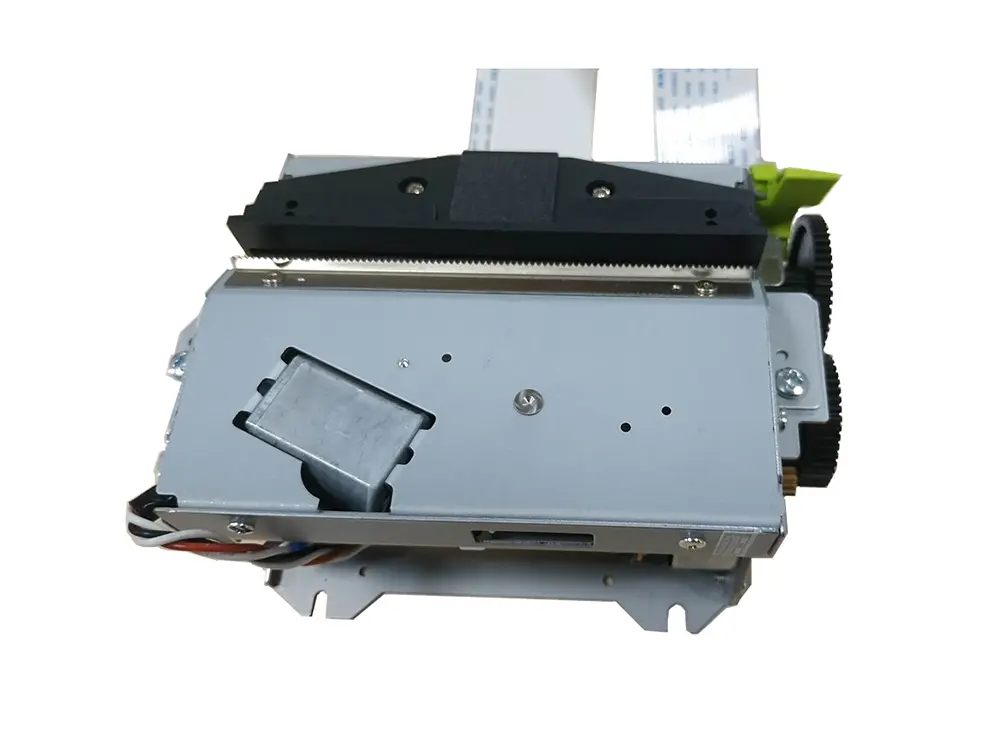

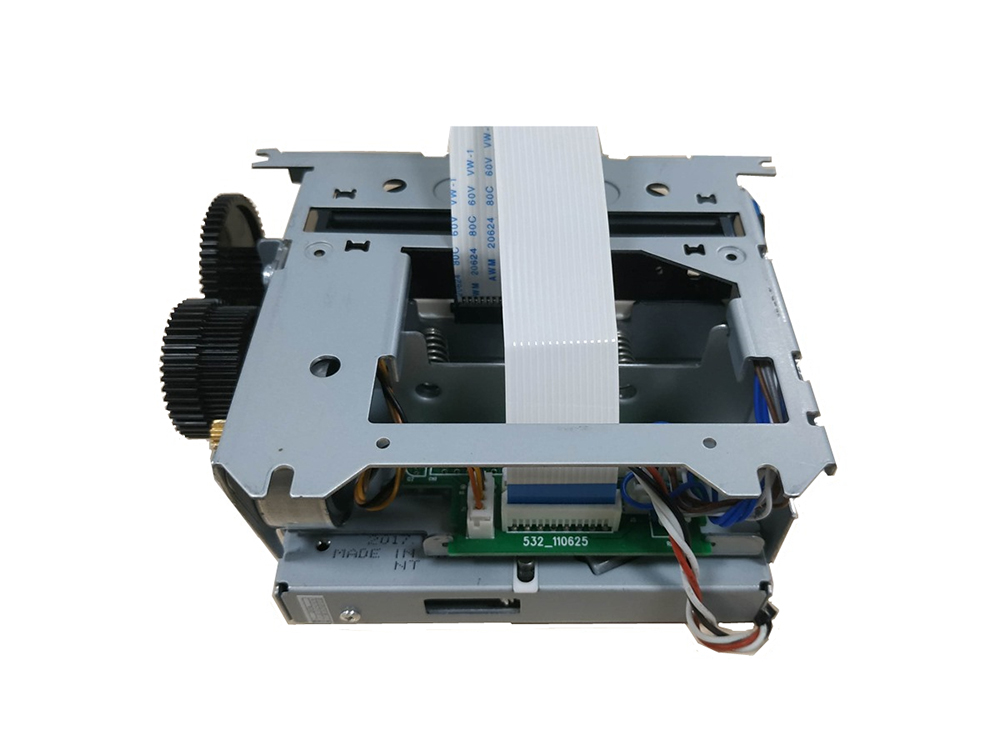

TP532-DL thermal printer mechanism series compatible EPSON M-T532

The unique movement design makes the TP532-DL feature automatic paper cutting, black mark detection, fast printing speed, wide operating voltage and high reliability.

Features

Specifications

Features

◆ Fast print speed（Max speed 150mm/s）

◆ Wide voltage

◆ High DPI（8dots/mm,203 DPI）

◆ Long life（100KM or 100 million pulse）

◆ With auto cut paper（half cut/full cut）

◆ With black mark detection

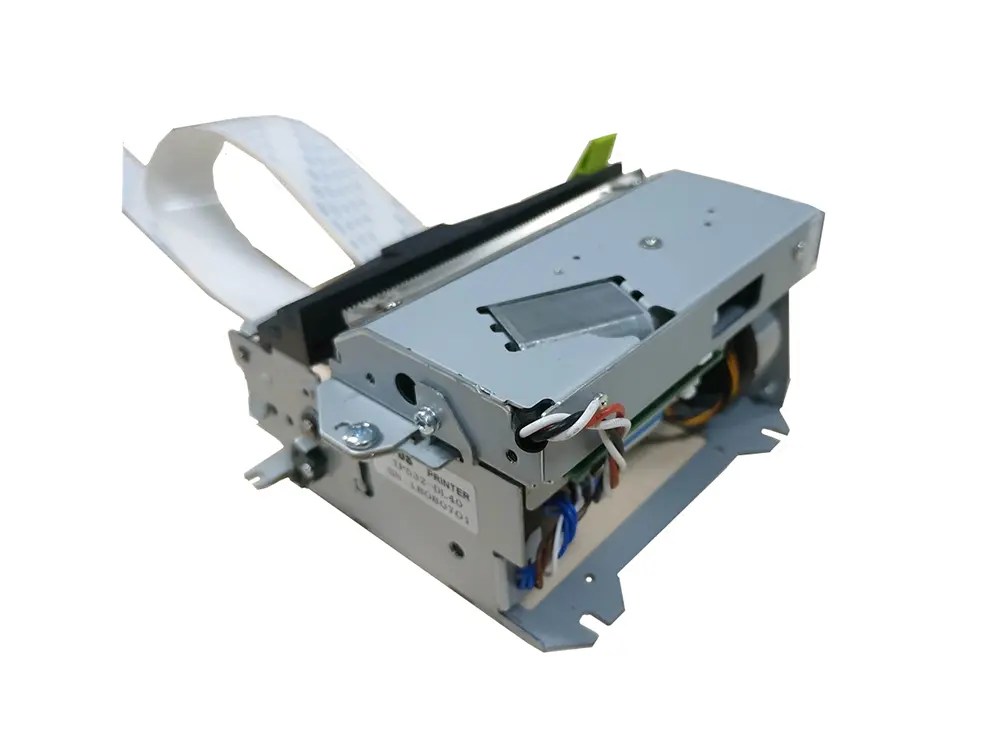

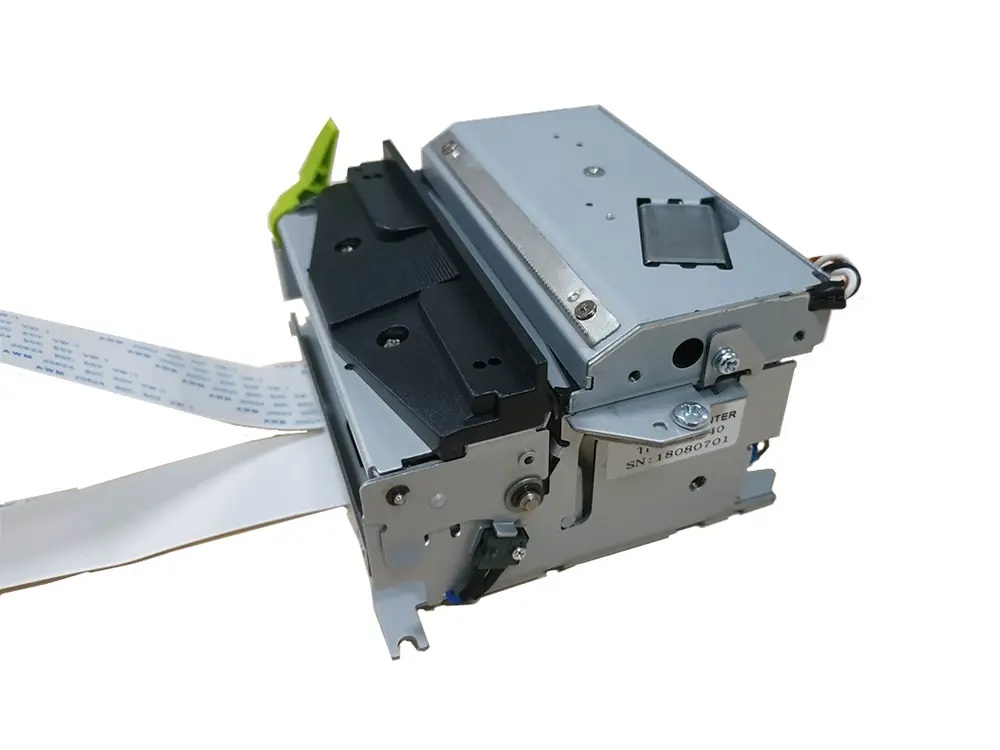

TP532-DL thermal printer mechanism compatible EPSON M-T532 (3)

Specification

Printing method	Thermal dot printing
Number of dots	640dots/line
Resolution（dot/mm）	8dots/mm
Valid Printing width	80±0.2
Paper width（mm）	80
Paper thickness（μm）	56-150μm
Paper feed pitch（mm）	0.125mm
Size（mm）	126.8x91.8x57.5（without FPC）
Weight（g）	532
Head temperature	By thermistor
Paper end sensor	By photo interrupter
Black mark detection	Reflective photocell
Roll in position detection	Tact switch
For printer head（V）	24±10%
For logic（V）	3.13-3.47 or 4.75-5.25
Feed paper motor（V）	24±10%
Auto cutter motor（V)	24±10%
End of paper,Black mark, roll in position（V）	5±0.25
Printer life	100KM
Cutter life	1 million times
Operating temperature（℃）	0～50（no condensation）
Operating humidity（RH）	10％～80％（no condensation）
Storage temperature (℃)	-25～70（no condensation）
Storage humidity（RH）	5％～95％（no condensation）

Thermal head specifications

Number of Heat Elements	640 dots
Dot density	0.125mm
Dot size	0.125mm
Valid printing width	80±0.2mm
Average Resistance Value	650Ω±3%
Operating voltage	24±10% V
Pulse life	100 million pulse
Mechanical life	100KM
Life test conditions	25 ° C, the heating time ratio is not more than 12.5%.
