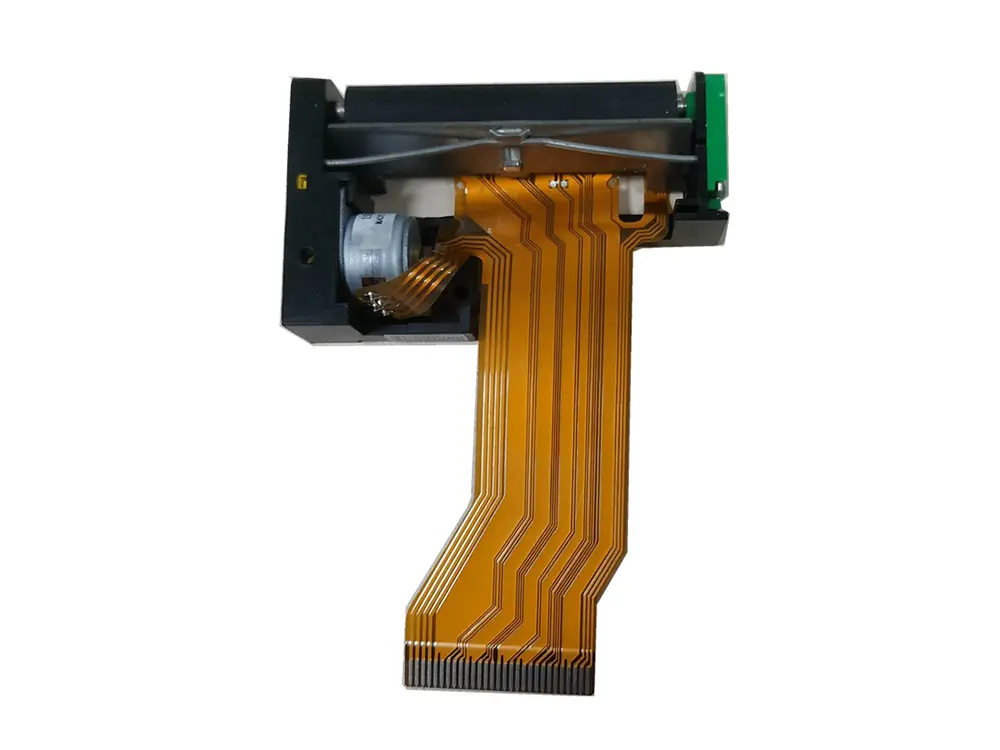

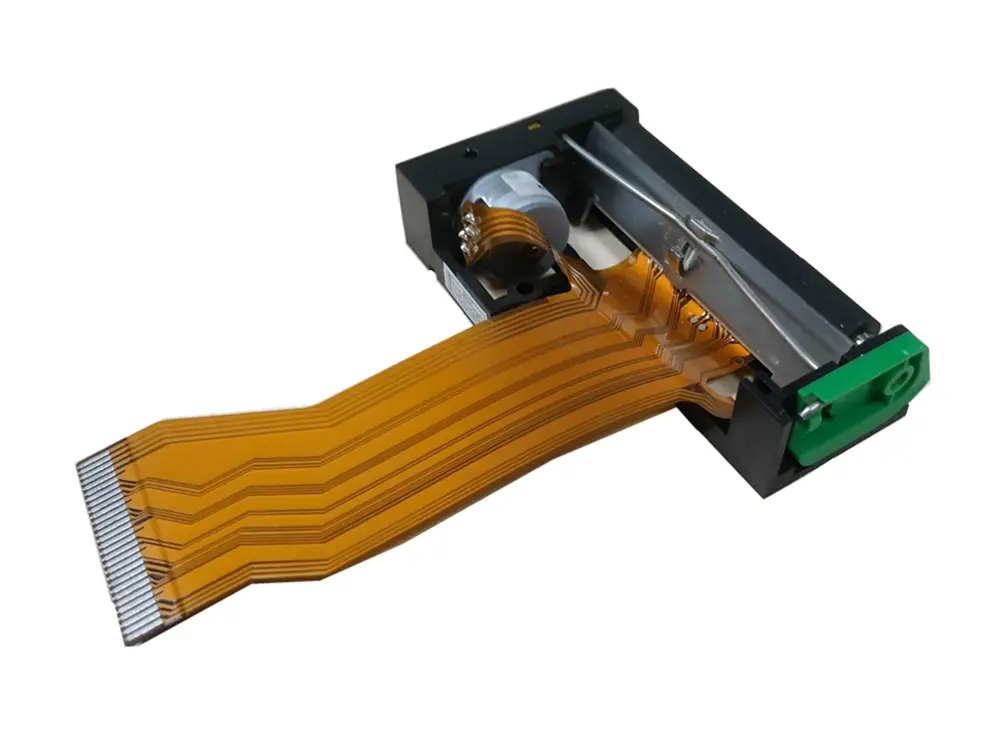

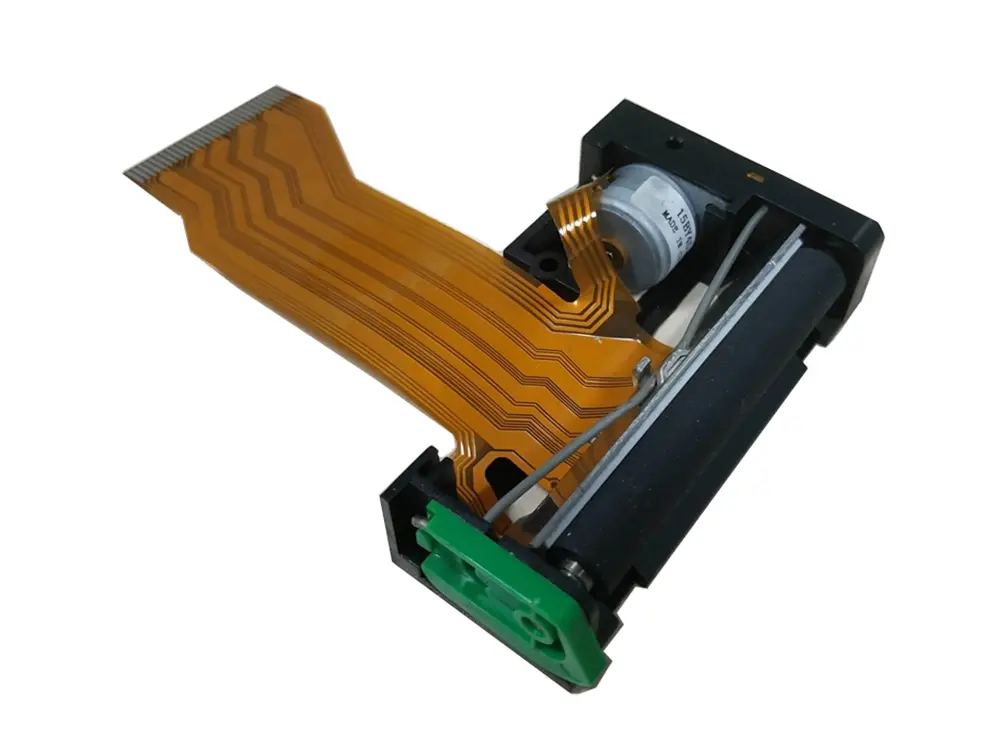

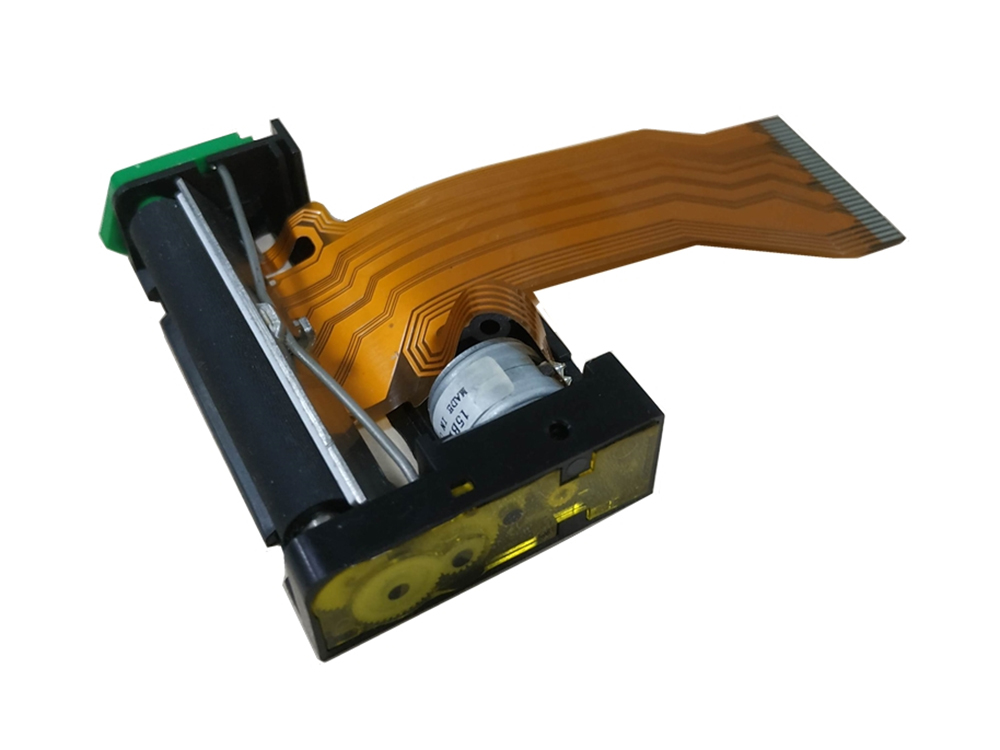

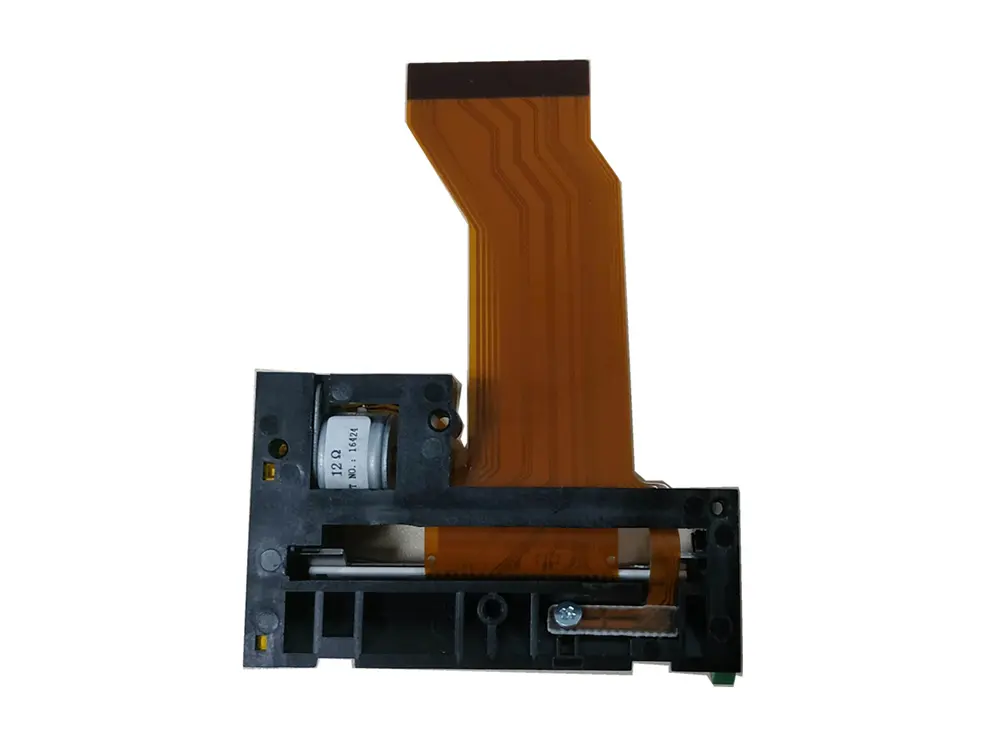

MP208 Thermal printer mechanism series(Compatible APS MP208-HS)
MP208 Features
◆ Easy loading paper
◆ Small size
◆ Light weight
◆ Fast print speed（max print speed 90mm/s）
◆ Wide working voltage
◆ High solution（8 dot/mm,203DPI）
◆ Long printing life（>50km）
◆ Low noise
Specification
Printing method Thermal |
dot printing |
Number of dots |
384dots/line |
Resolution |
8dots/mm |
Valid Printing width |
48mm |
Paper width (mm) |
58mm |
Paper feed pitch |
0.0625mm |
Dimension (mm) |
68.3x41x15 |
Weight (g) |
36 |
Head temperature |
By thermistor |
Paper end sensor |
By photo interrupter |
For printer head (V) |
4.2～8.5 |
For logic (V) |
2.7～5.25 |
Operating temperature (℃) |
0～50 (no condensation) |
Operating humidity (RH) |
20％～85％ (no condensation) |
Storage temperature (℃) |
-25～70 (no condensation) |
Storage humidity (RH) |
5％～95％ (no condensation) |
Thermal head specifications
Number of Heat Elements |
384dots |
Dot density |
0.125mm |
Dot size |
0.11mm x 0.10mm |
Paper feed pitch |
0.0625mm |
Valid printing width |
48mm |
Average Resistance Value |
165Ω±4% |
Operating voltage |
4.2～8.5V |
Pulse life |
108pusle |
Mechanical life |
50KM |
Life test conditions |
25 ° C, the heating time ratio is not more than 12.5%. |
Application
Automotive
Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters
Express
MP208: The Compact Powerhouse for Speed and Clarity in Printing
The MP208 thermal printer mechanism series is a beacon of innovation in the printing industry, offering a compact design that doesn't compromise on performance. This series is designed to provide a seamless experience in high-speed printing with a maximum speed of 90mm/s, making it ideal for environments where time is of the essence.
The MP208's small size and light weight make it a versatile choice for a variety of applications, from automotive to medical equipment, where space is valuable. Its wide working voltage range ensures compatibility with diverse power sources, enhancing its adaptability in different devices.
The printer mechanism's high resolution of 203 DPI, equivalent to 8 dots/mm, guarantees that every print is sharp and clear. The valid printing width of 48mm, combined with a paper feed pitch of 0.0625mm, allows for precise control over print quality. The MP208's thermal head, with 384 heat elements and a dot density of 0.125mm, provides a clear and defined printing area.
Built to last, the MP208 boasts a mechanical life of 50KM and a pulse life of 108 pulses, ensuring long-term reliability. Its low noise operation and long printing life of over 50km make it a quiet and efficient performer, suitable for continuous use in various settings.
The MP208 is designed to operate in a wide range of temperatures from 0°C to 50°C and humidity levels from 20% to 85% RH, making it a robust choice for various climates. Storage conditions are also flexible, with the mechanism able to withstand temperatures from -25°C to 70°C and humidity levels from 5% to 95% RH.
The MP208's versatility extends to its applications, covering a wide spectrum from data terminal devices and EFT POS to fiscal printers and portable terminals. Its adaptability makes it a valuable asset in any industry that requires reliable and efficient printing solutions.
Choose the MP208 for your next project and benefit from its precision, versatility, and durability in a thermal printer mechanism that is designed to meet the demands of today's dynamic printing environments.
